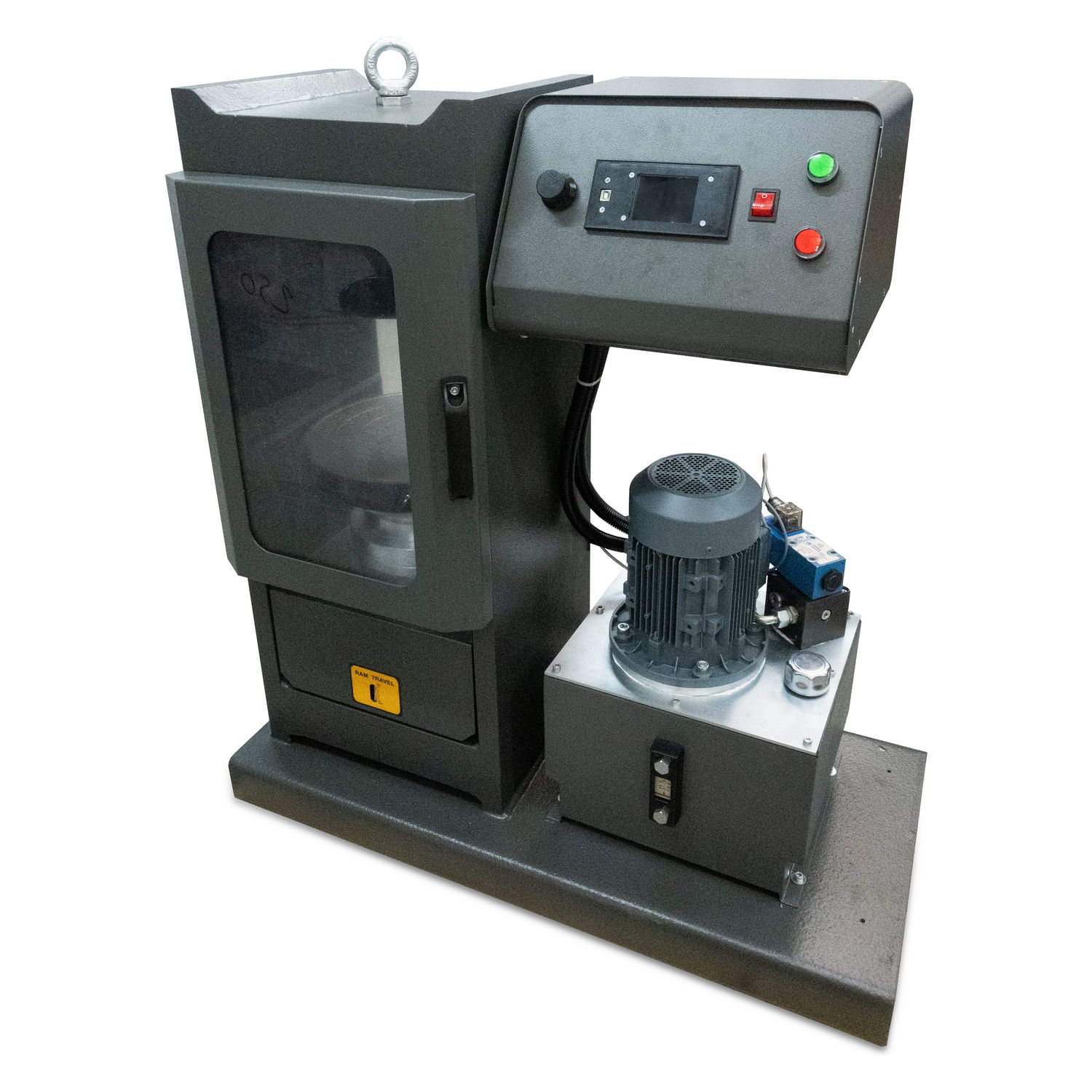

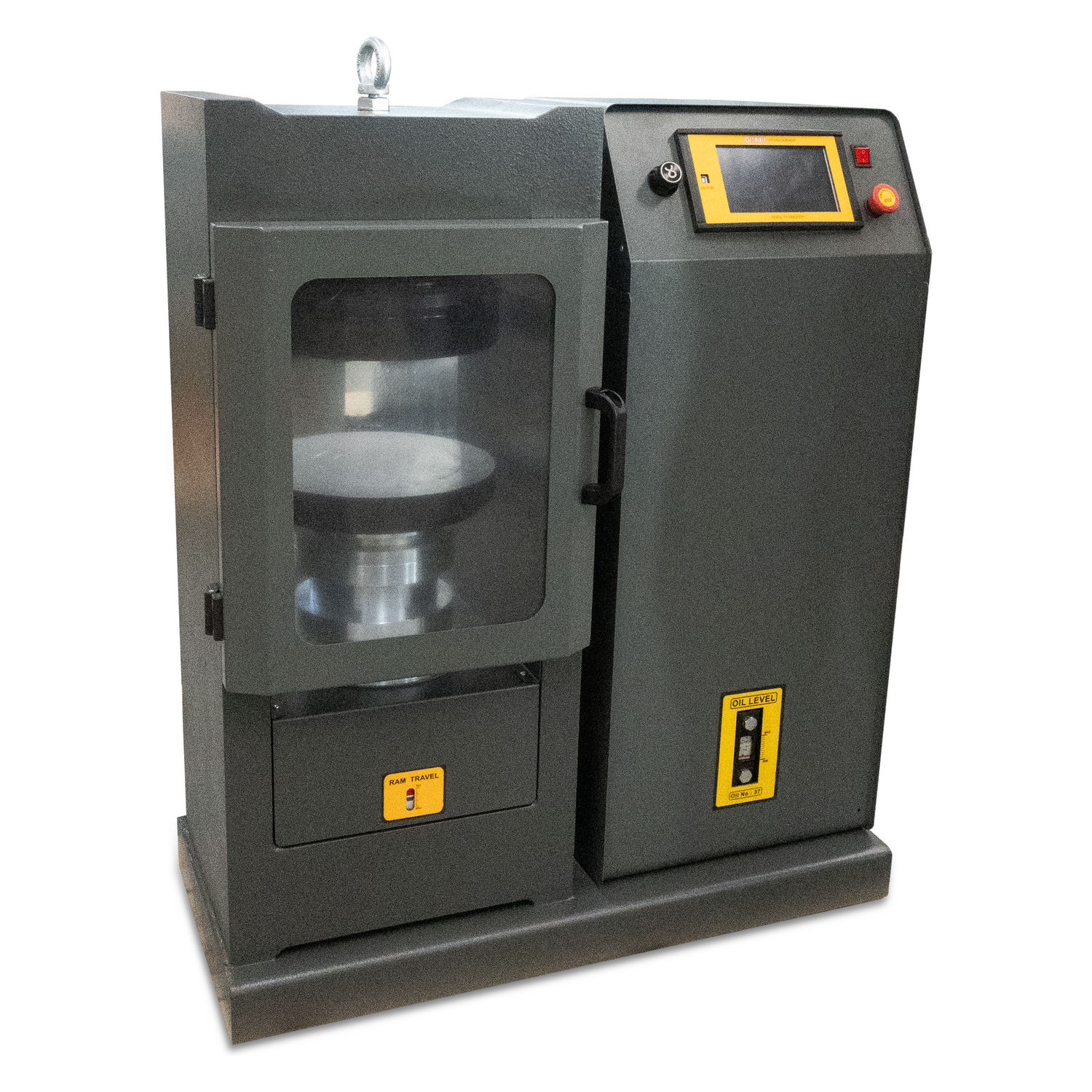

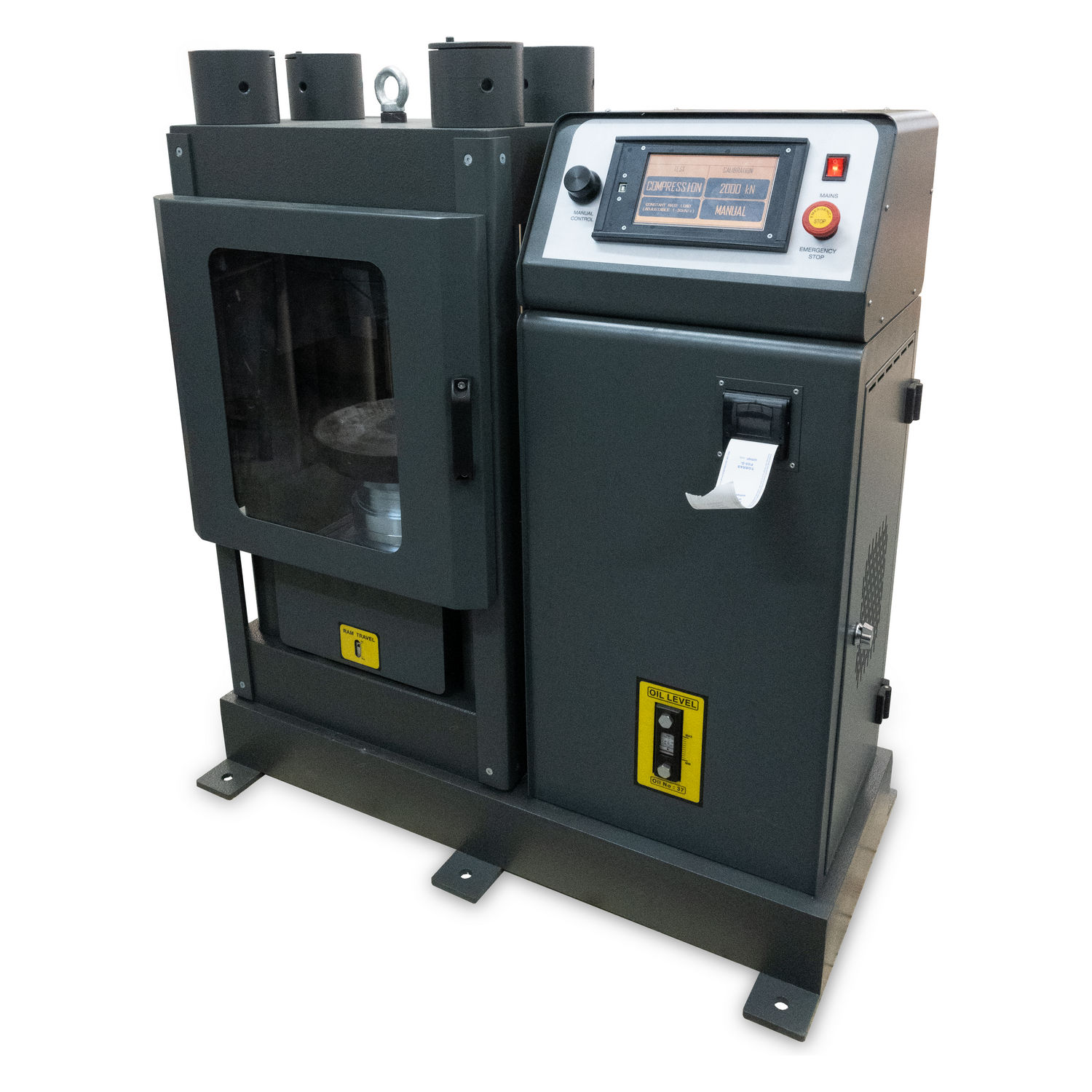

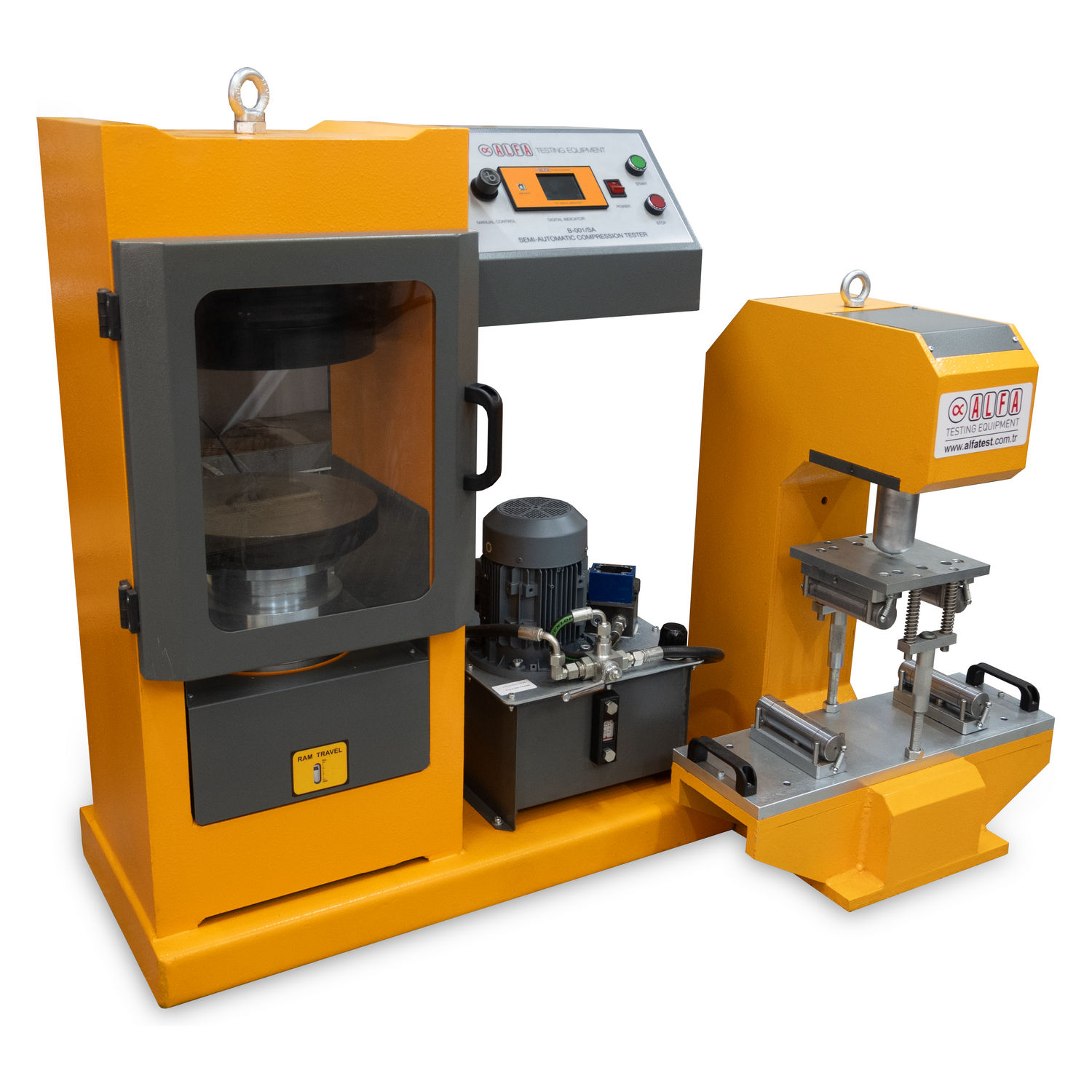

COMPRESSION TESTER, Mono-Block
- Used to test the compression strength of concrete cubes/cylinders of different sizes.
- ALFA is the first company in the world to manufacture Computer-Controlled Compression Testers.
- The rigid design provides stability and strength for a better using experience.
- The load frame, either monoblock or 4-column fabricated construction, carries the ball-seated upper platen which adjusts itself to apply homogeneous loading on the specimen.
- The lower platen is located on the loading piston which protected against debris by a cover.
- The ball seating and the lower platen assemblies are supplied in a way to match the capacity of the machine and the specimens to be tested, ensuring accurate alignment and stable repeatable testing.
- All different models have been designed with reference to the International Standards (ASTM C39 and EN 12390-4), ensured that the machines can easily meet the standards and, where appliable, can be supplied with relevant certification for calibration accuracy and other parameters.
- Supplied complete with spacer discs (Additional spacer discs can be ordered separately).
| Rigid monoblock structure |
| Interlocked at the welding sections for higher stability and stiffness |
| The rigid frame features welded box construction resulting in a monoblock unit that meets standards’ rigidity requirements. |
| All the monoblock frames are supplied standard with front safety guard door. |
| By combining the stiffness of the frame with the accuracy of the control unit, one machine can perform tests on a variety of specimen types. |
| 220 - 240 V / 50 - 60 Hz |
