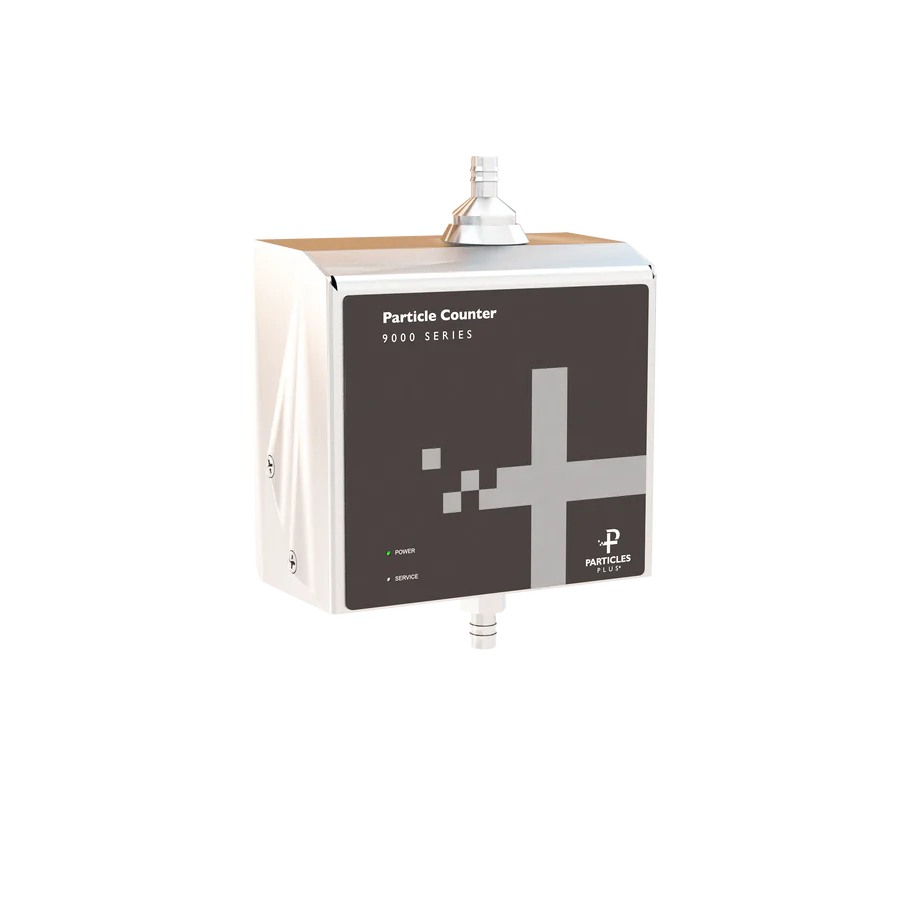

9501 Remote Particle Counter
- Authorized Nano Clean distributor
- Supplied across the UAE
- +971 6 573 0911
The Particles Plus 9501 Remote Particle Counter measures 0.5 μm to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM) and is the most advanced basic remote particle counter available. The 9501 remote particle counters report 6 particle size channel. The remote is designed to be installed on an external vacuum system with internal critical orifice controlled flow. Integration is easy into a building automation and cleanroom management system via standard MODBUS RS-485 communications.
Features & Benefits
- Measures 0.5 μm to 25 μm
- 0.1 CFM (2.83 LPM) flow rate
- Long-life laser diode technology
- Measures up to 6 channels of simultaneous data (30 channels optional)
- Particle concentrations up to 15,000,000 Particles/ft3 @ 10% coincidence loss
- Internal critical orifice
- Internal HEPA filter
- User-selectable channel sizes
- (Optional) temperature and relative humidity probe available
- Stores up to 65,000 sample records for on-board data redundancy
- Connect using Modbus RTU/ASCII over isolated RS-485
- Versatile mounting options
- Complies with ISO 21501-4 and JIS B9921 standards
- Lightweight stainless steel enclosure
- Seamless integration into a facility monitoring system
- Alarm light
- LED Indicators
Data sheet
Specification
| Basic Specification |
Size Range: 0.5μm – 25.0μm Channels: 6 Flow Rate: 0.1 CFM (2.83 LPM) Buffer Memory: 65,000 Samples Environmental: (Optional) Temperature & RH Power: 9 - 24 VDC (< 1.5 watts) Comms: MODBUS™ RTU or ASCII outputs (over isolated RS-485) |
|---|---|
| Channels (Factory Calibrated) | 6 channels 0.5 μm 0.7 μm 1.0 μm 2.5 μm 5.0 μm 10.0 μm |
| Accessories Included | Operating manual on USB flash drive Isokinetic probe Power supply and cable |
