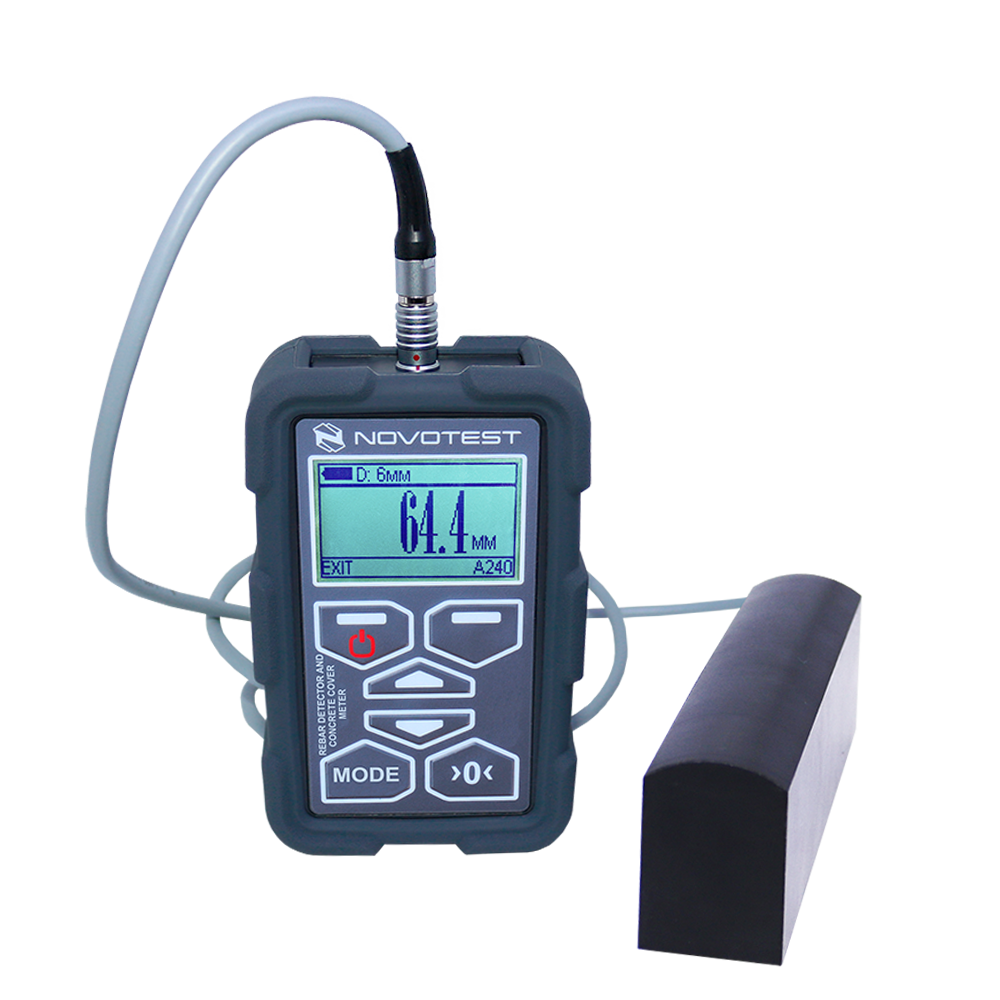

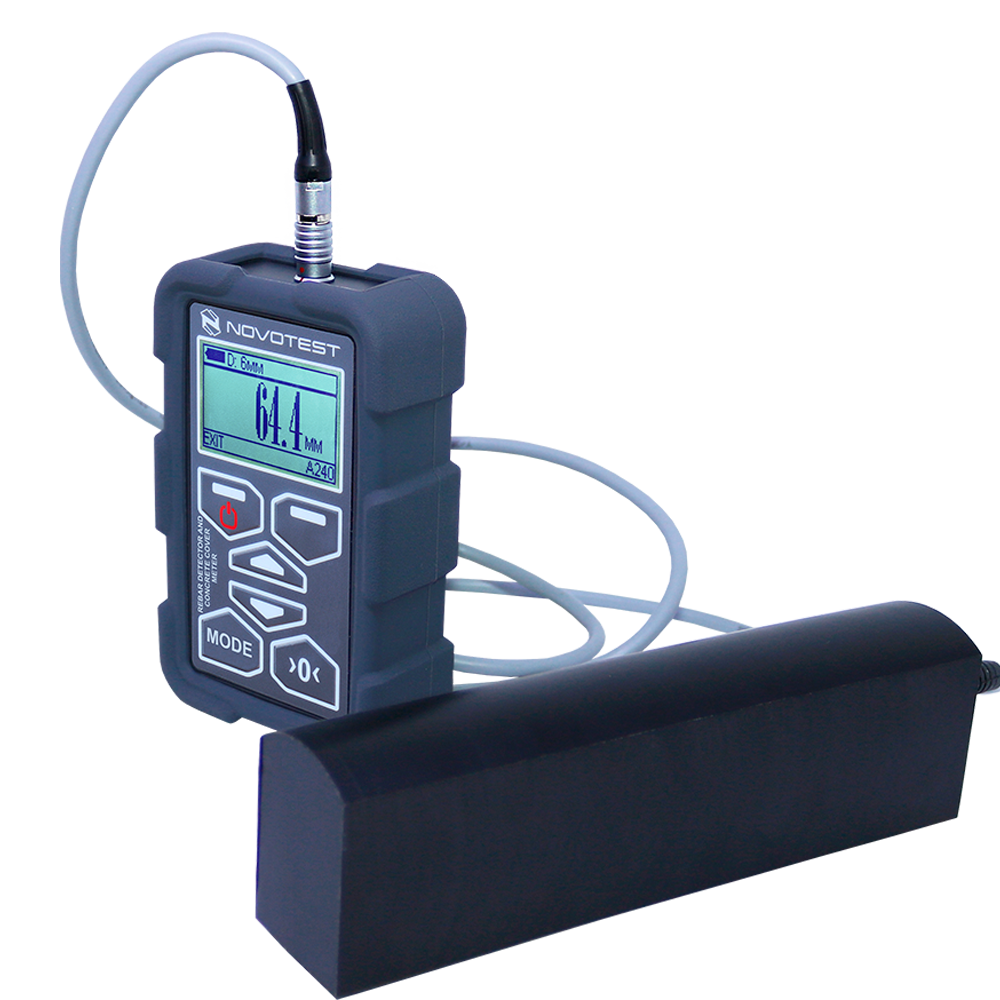

Concrete Cover Meter NOVOTEST Rebar Detector (NEW GENERATION 2020)
Concrete Cover Meter NOVOTEST Rebar Detector is used to measure the thickness of the concrete cover, determine the location and estimate the diameter of rebar in reinforced concrete products in the conditions of enterprises, construction sites, buildings and structures in use.
| Range of measuring the thickness of the protective layer, mm | 5 … 170 |
| Controlled diameters, mm | 6-50 |
| Thickness measurement accuracy of the protective layer, mm | (0,03 h + 0.5) |
| Measurement accuracy of the rebar diameter, mm | Not regulated, depends on the testing object |
| Measurement scales | mm inch |
| Standards | BS 1881, Part 204 DIN 1045 SN 505262 SS 78-B4 |
| Wireless connection with Android gadgets via NOVOTEST Lab App | No |
| Languages | English Spanish Russian *additional languages available by request |
| Overall dimensions, mm: - electronic unit – probe |
– 122х76х36,5 – 200x50x35 |
| Operating temperature, ° C | -20 … +40 ° C |
| Power supply | 2pcs AA batteries |
| Time of continuous work hours, not less | 8 |
| Weight of electronic unit with batteries, no more, kg | 0.2 |
| Package dimensions, cm | 33*27*10 |
| Package weight, kg | 1.7 |
