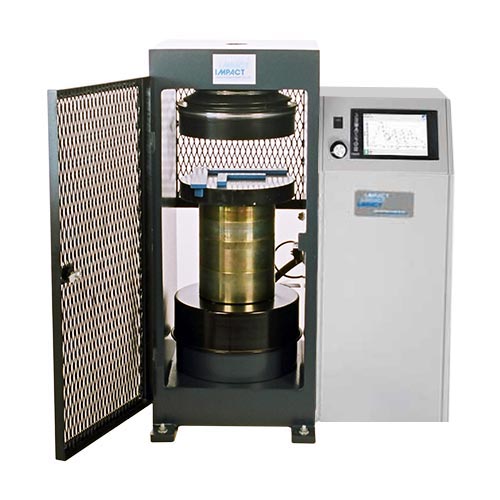

Automatic 2000kN Cube and Cylinder Compression Machine designed to test 100mm, 150mm and 200mm cubes and cylinders up to 320mm long Fully compliant with BS EN 12390-4 in terms of Force measurement &the stringent stability, alignment & restraint requirements of the Load Frame.

Compact Welded steel load frame with a high degree of mechanical stability

Ball-seated upper platen

Lower platen, positively located on the loading ram, marked to allow centring of both cubes and cylinders

Loading ram with cover to prevent debris damaging it during testing and a limit switch to prevent it from exceeding the maximum limit of travel

Frame fitted with mesh guards at front and rear to protect the operator

Front guard is hinged for ease of access

Supplied with 300mm diameter upper and lower platens and 200mm diameter distance pieces to allow for testing cubes and cylinders
